Study Plans

Find the right boat for you

Wharram Study Plans are intended to help you decide if a particular boat design is for you. They provide more detail than is available in the Design Book. The most important part of the Study Plan is the Materials List, which will list the major boat building materials requirements so you can cost your project in your own area. We feel sure that after studying these plans you will appreciate the quality and detail of the Building Plans.

Study Plans are available as a Hard Copy or Digital Download. Downloads are instant access and eliminate postage costs, which is particularly beneficial for international customers. Hard Copy Study Plans are being phased out and will no longer be available after stock has sold out, at which point they will be digital only. Get your hard copies while you can.

Buying more than one Study Plan? The following discounts will be applied automatically:

  • Two Study Plans: 10% off both
  • Three Study Plans: 20% off all three
  • Four or more Study Plans: 30% off all
Study Plans
The Hitia designs are the perfect beach catamarans. Their easy economical construction, stability and speed makes for affordable weekend adventure boats. The Hitia 14 can be carried on the roof of your car and fits on the deck of a larger boat. The Hitia 17 has more stowage space and room for a tent on deck for longer excursions. These boats are ideal for small adventures and coastal treks.
Study Plans

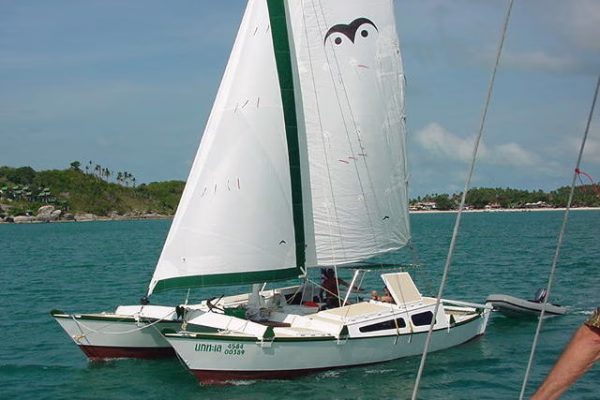

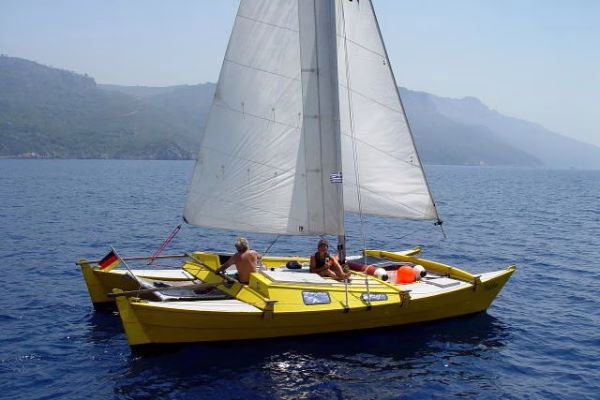

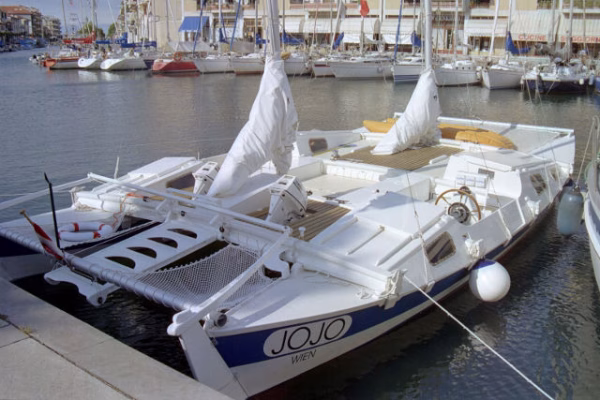

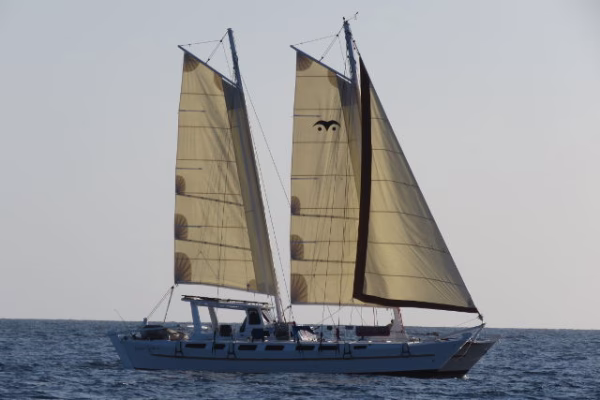

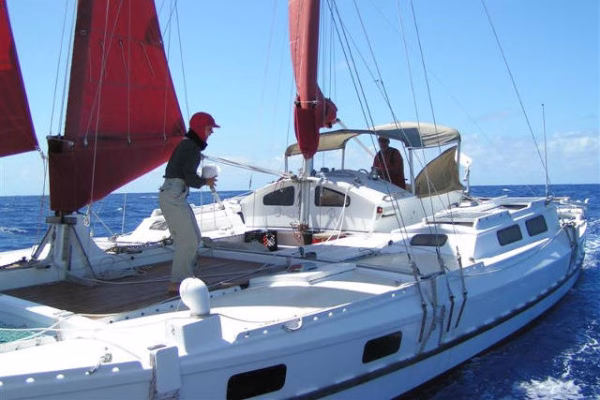

The Tiki designs range from the Coastal Trekking Tiki 21, to the comfortable ocean cruiser, the Tiki 46. The larger Tiki designs of 30ft and over are craft capable of longer voyages and ocean crossings. They are designed to be less costly to build by using appropriate wood/epoxy technology and by eliminating, wherever possible, expensive metal fittings common to modern yacht design.
Study Plans

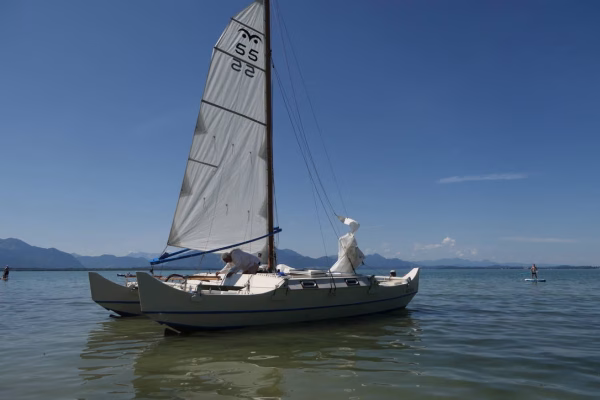

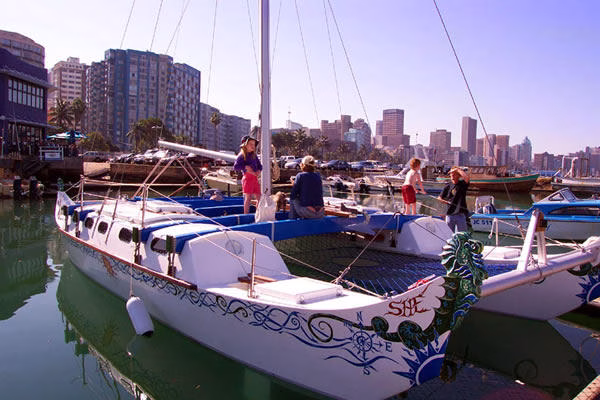

The Pahi Designs are a different visual/sculptural approach to the basic design elements inherent in the Classic designs. From the coastal trekking Pahi 26 to the impressive 63' flagship of the Wharram fleet 'Spirit of Gaia' - the PAHI shape is more evocatively 'Female' than the Classic Wharram designs. Constructionally, they are simpler to build, using epoxy fillets instead of more difficult wood joints.
Study Plans

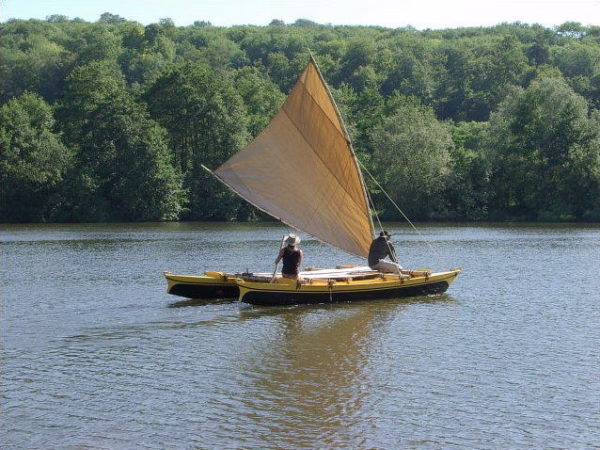

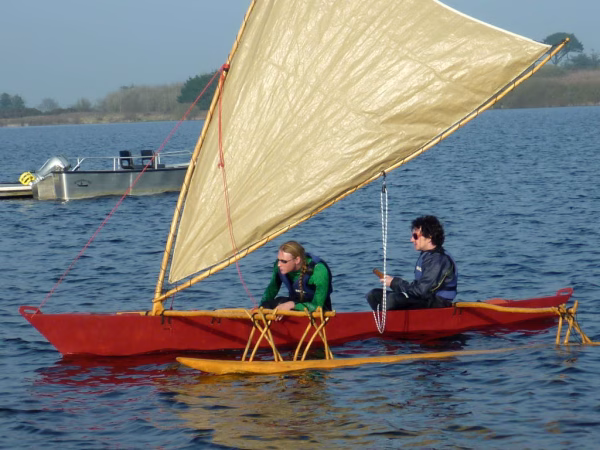

Ethnic Designs cater for those who want a "traditional" Pacific sailing craft, built using appropriate modern materials and methods. With everything self-made these boats are lower cost to build. They range from the 16' Melanesia outrigger canoe to the 38' ocean going ship 'Tama Moana'. These designs arose after requests from Pacific Island peoples for James to design craft to overcome shortages of "traditional" building materials.
Study Plans

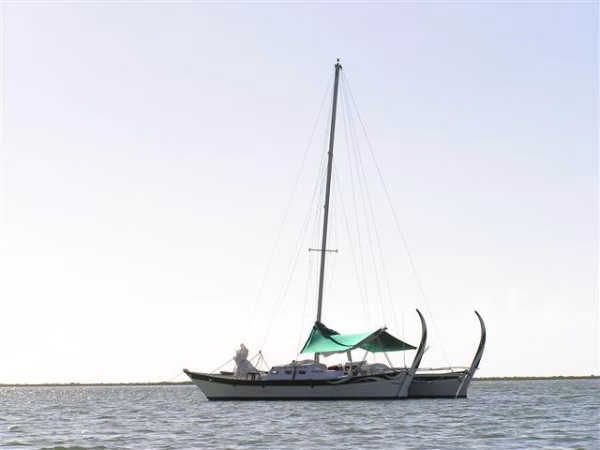

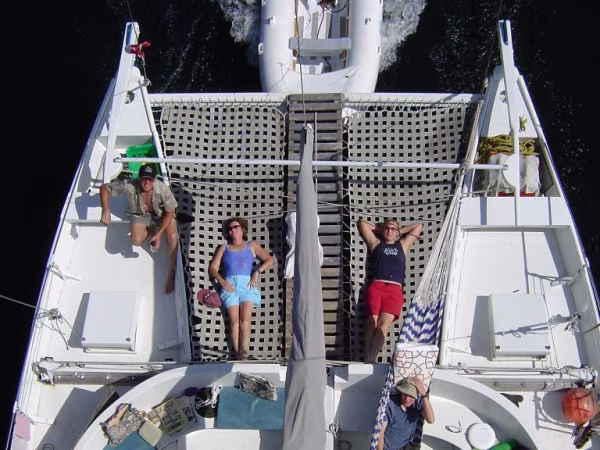

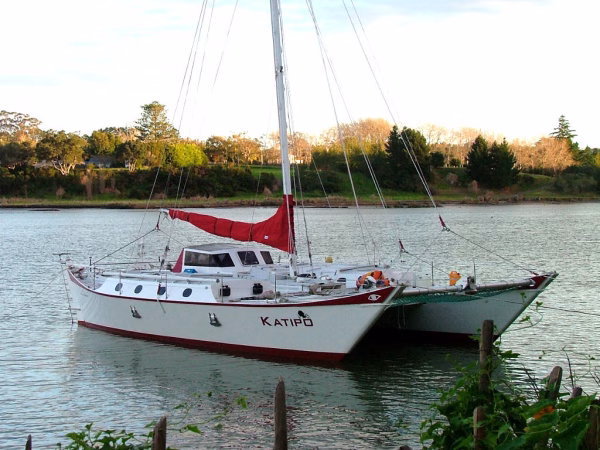

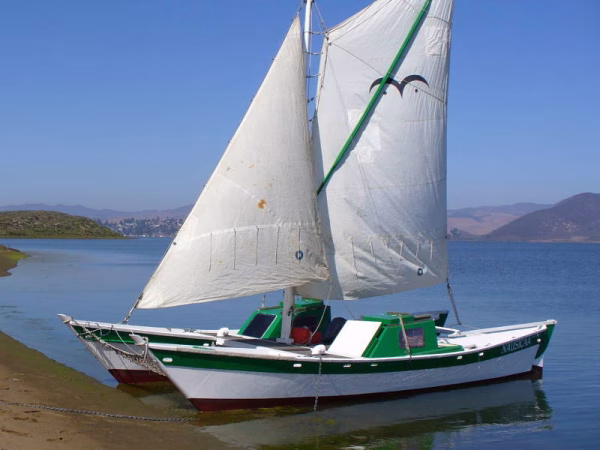

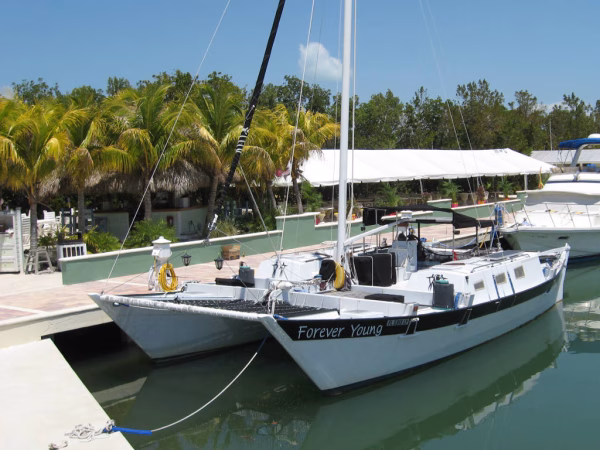

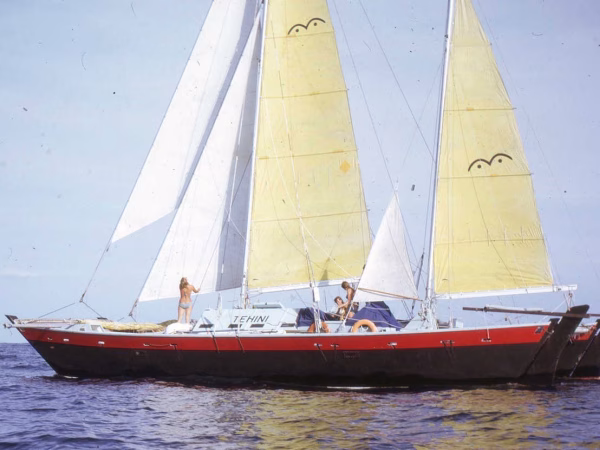

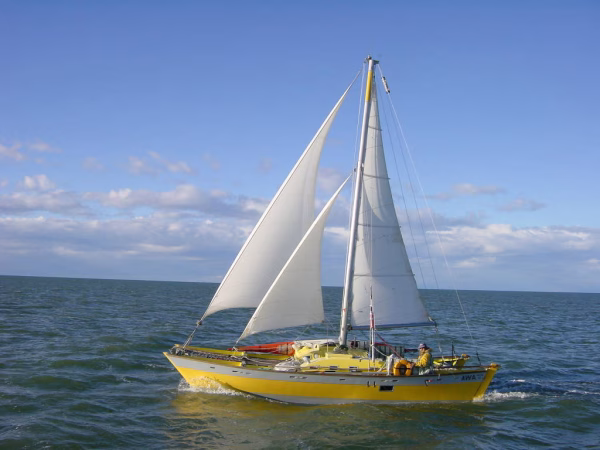

The 'Classic Designs' are recognised as beautiful, safe boats - easy to build, easy to sail, sturdy and stable. Many anchorages around the world are graced by these Classic Designs, and nine are still available, from the 16ft Maui to the 51ft Tehini. They were the first range of Wharram catamarans, designed in the 1960s and 70s, based on the sea experience of James Wharram's pioneering ocean crossings.
Study Plans
The Islander 65 was originally designed in 2000 as an island-hopping cargo/passenger/trading vessel. With her 10 ton load carrying ability, she is also a very suitable vessel for expedition work, charter or as a dive boat. The Islander 55 is a smaller version and is suitable for charter use or as a large ocean cruiser. Her interior can be simple flexispace, or she can have up to 5 separate double charter cabins.
