Narai Mk I & II Study Plan
£16.50
The Narai Mk I & II Study Plan is intended to help you decide if this design is for you.
Description
The NARAI design is a direct descendant of the 40ft RONGO on which James made his pioneering voyage across the North Atlantic in 1959. NARAIs have been rigged as junks, Polynesian sprits, Bermudan ketch, Bermudan cutter or gaff schooners – powered by deck mounted diesels or outboard engines, the NARAIs attract the pioneering type. Now also available with the Wharram Wingsail rig (extra package).
The Mk I is the basic design. The Mk II has an extended centre cabin, giving more accommodation space. Drawings for both included.
Study Plan Contents

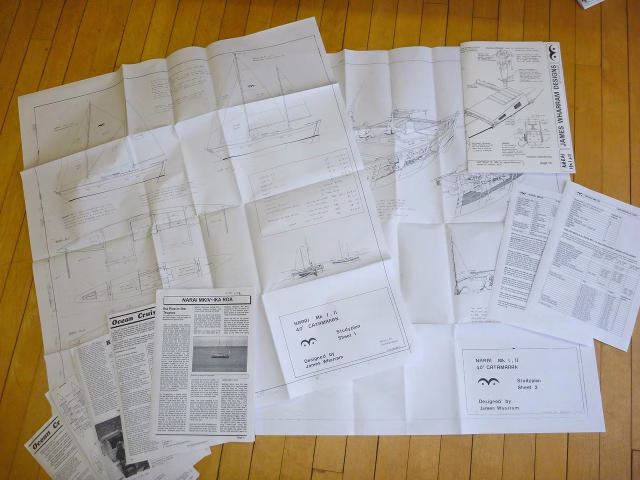

- 2 x Approx A1 Plan Sheets
- Materials List
- 10 x Pages of magazine article extracts
- FAQ list
Design Data
| Building Method: | Ply/Timber/Epoxy/Laminate | |
|---|---|---|
| Length Overall: | 40′ | 12.19 m |
| Beam overall: | 18′ 6″ | 5.64 m |
| Waterline length: | 32′ | 9.75 m |
| Draft: | 2′ 3″ | 0.69 m |
| Weight: | 3 tons | |
| Loading capacity: | 3 tons | |
| Sail area: | 600 sqft | 55.8 sqm |
| Building Time Estimate: | 2000 – 2500 hours | |
