Raka Study Plan

£5.00

The Raka Study Plan is intended to help you decide if this design is for you.

Category:

Description

The RAKA class, the same length as the TANGAROA, is a Slim-Line ship. Originally designed for George Payne who wanted a boat that he could enter in local club races in the Bristol Channel and stand a chance of winning.

He won several.

Study Plan Contents

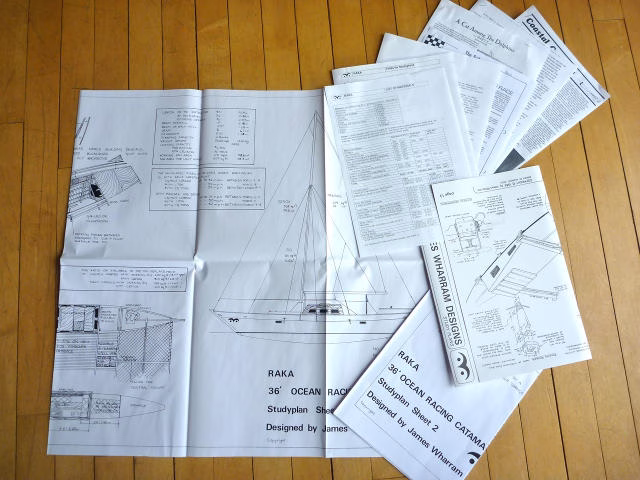

  • 2 x Approx A1 Plan Sheets
  • Materials List
  • 7 x pages of magazine article extracts
  • FAQ list

Design Data

Building Method: Ply/Timber/Epoxy/Laminate
Length Overall: 36′ 10.97 m
Beam overall: 19′ 5.80 m
Waterline length: 30′ 9.14 m
Draft: 2′ 0.61 m
Weight: 1.7 tons
Loading capacity: 1 – 1.5 tons
Working sail area: 415 sqft 38.6 sqm
Max. sail area: 627 sqft 58.3 sqm
Building Time Estimate: 1600 hours
