Wharram Study Plans are intended to help you decide if a particular boat design is for you. They provide more detail than is available in the Design Book. The most important part of the Study Plan is the Materials List, which will list the major boat building materials requirements so you can cost your project in your own area. We feel sure that after studying these plans you will appreciate the quality and detail of the Building Plans.
Study Plans are only available as digital downloads. Downloads are instant access and eliminate delivery costs, which is particularly beneficial for international customers. They can also be printed if you wish.
The Mana 24 design does not have a study plan, comprehensive design information is available on our site.
Buying more than one Study Plan? The following discounts will be applied automatically:
- Two Study Plans: 10% off
- Three Study Plans: 20% off
- Four or more Study Plans: 30% off
Pahi 42 Study Plan
£19.50
The Pahi 42 Study Plan is intended to help you decide if this design is for you.
Description
The Pahi 42 is a good size for family long distance cruising. The deck pod was a new venture for James Wharram Designs in 1980. Not only does it provide shelter for the steering / watch crew, but a sleeping cabin for the skipper or navigator to be on instant call and has been appreciated by the many builders.

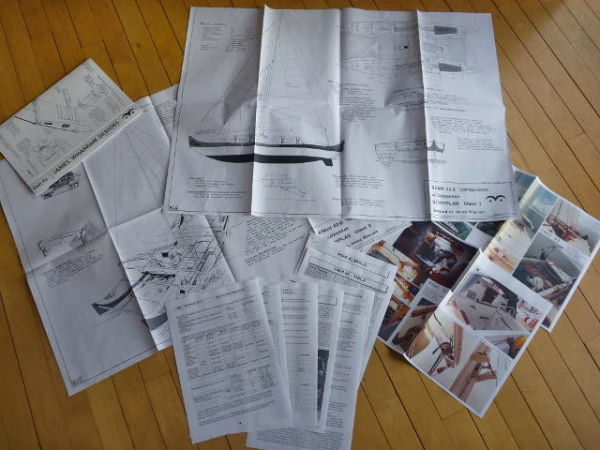

Study Plan Contents
- 2 x A1 Plan Sheets
- 2 x A3 Colour Photo Sheets
- Materials List
- 10 x Pages of magazine article extracts
- FAQ list
Design Data
| Building Method: | Ply/Glass/Epoxy/Laminate | |
|---|---|---|
| Length Overall: | 42′ | 12.80 m |
| Beam Overall: | 22′ | 6.70 m |
| Waterline Length: | 34′ | 10.4 m |
| Draft: | 2′ 4″ | 0.7 m |
| Weight: | 3.5 tons | 3500 kg |
| Loading capacity: | 3 tons | 3500 kg |
| Max sail area: | 1000 sqft | 93 sqm |
| Forward bunk width: | 3′ 9″ – 3′ 1″ tapered | 1.15 m – 0.94 m tapered |
| Aft bunks width: | 3′ – 1′ 5″ tapered | 0.92 m – 0.44 m tapered |
| Building Time Estimate: | 2500 – 3000 hrs | |
Visual Tour
Pahi 42 Photo Gallery Pahi 42 VideosMore Information
-
Mother Ocean’s Lesson in Survival
Mike Lynn’s account of an Atlantic crossing on Pahi 42 ‘Mother Ocean’.
