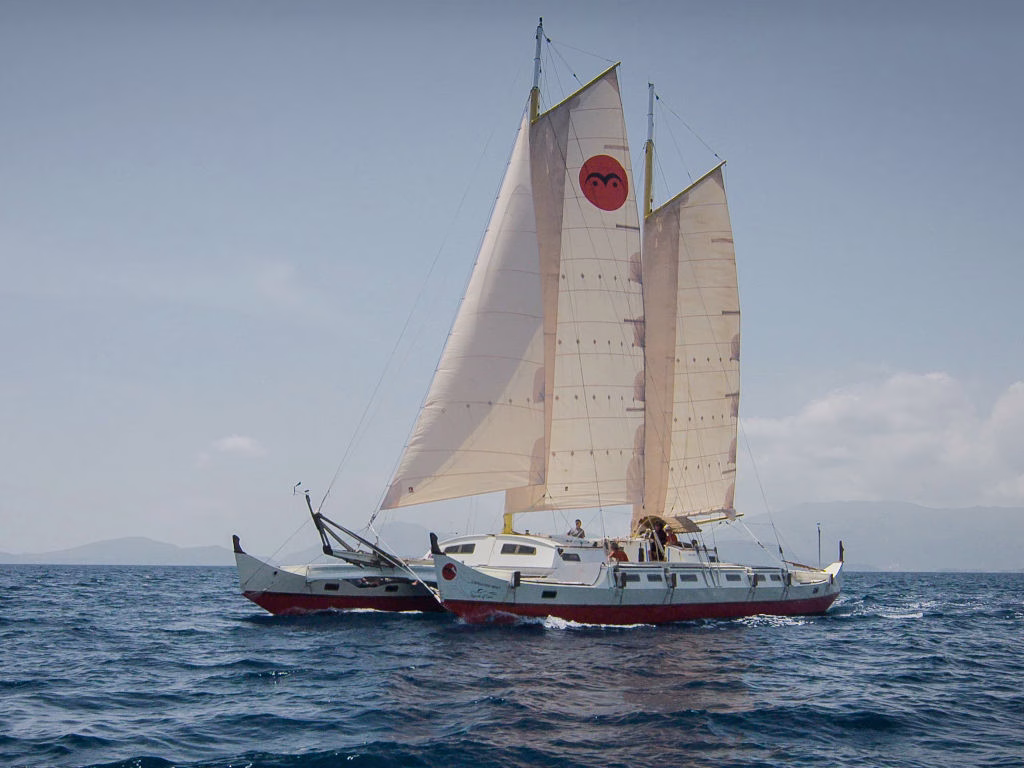

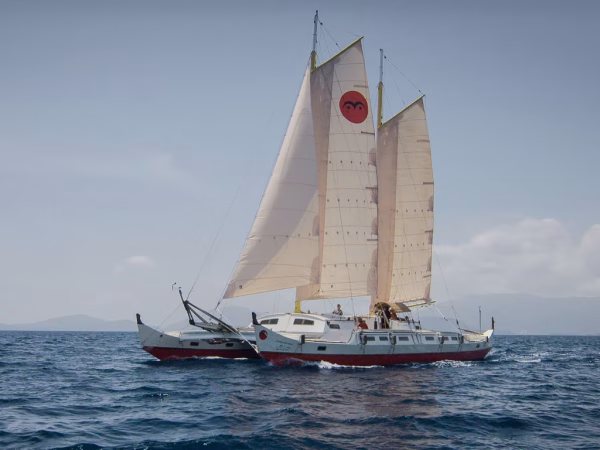

Large catamaran with red sails cruising on the coast

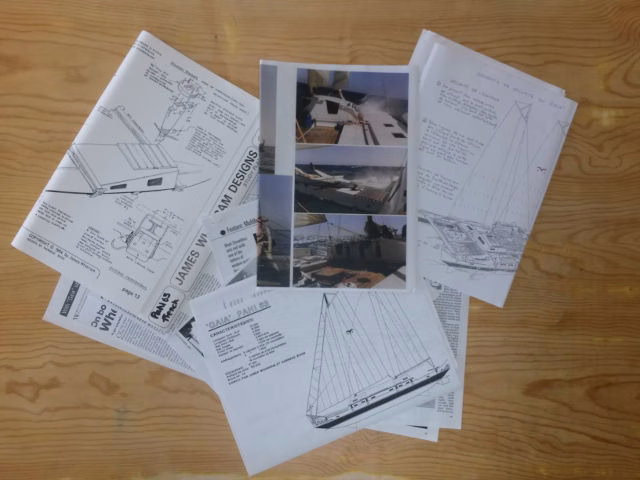

Papers and articles spread out on a surface.

Pahi 63 Study Plan

£23.00

The Pahi 63 Study Plan is intended to help you decide if this design is for you.

Category:

Description

The Pahi 63 is a tribal boat, suitable for expedition sailing and for larger groups of people to cruise or eco-charter. It is based on traditional Polynesian double canoe principles, is most suitable for use in warmer climates.

The deck/accommodation layout resembles a village, with a central public area including ‘well’ and (optional) ‘hearth’, surrounded by private cabins. This centre deck and the separate aft and fore deck areas give three large emotionally different spaces, enabling people to have hours in seeming solitude.

This deck layout combined with the ‘Flexi Space’ hull cabins (all with their own entrance) enables 8-10 people to live peacefully together for weeks at a time.

Study Plan Contents

  • 3 x A3 Plan Sheets
  • 4 x A4 pages Design Details
  • 2 x A4 Sailing Performance Sheets
  • 3 x A3 Colour Photo Sheets
  • Materials List
  • 6 x pages magazine article extracts
  • 1 x copy of “Appropriate Technology in Catamaran Designs and Construction” (monograph – 10 pages plus illustrations)

Design Data

Building Method: Ply/Glass/Epoxy/Laminate
Length Overall: 63′ 19.20 m
Beam Overall: 28′ 8.53 m
Waterline Length: 51′ 15.5 m
Draft: 3′ – 5′ 0.9m – 1.5m
Weight: 8 tons
Loading capacity: 4.5 tons
Sail area: 1400 sqft 130 sqm
Building Time Estimate: 4000 hours
