Wharram Study Plans are intended to help you decide if a particular boat design is for you. They provide more detail than is available in the Design Book. The most important part of the Study Plan is the Materials List, which will list the major boat building materials requirements so you can cost your project in your own area. We feel sure that after studying these plans you will appreciate the quality and detail of the Building Plans.
Study Plans are only available as digital downloads. Downloads are instant access and eliminate delivery costs, which is particularly beneficial for international customers. They can also be printed if you wish.
The Mana 24 design does not have a study plan, comprehensive design information is available on our site.
Buying more than one Study Plan? The following discounts will be applied automatically:
- Two Study Plans: 10% off
- Three Study Plans: 20% off
- Four or more Study Plans: 30% off
Tiki 26 Study Plan
The Tiki 26 Study Plan is intended to help you decide if this design is for you.
Description
The Tiki 26 was designed by popular demand soon after the Tiki 21, for people who wanted to do more serious Coastal cruising. Her ocean going abilities have since been proven in various ocean crossings.
The Tiki 26 can be trailed and is easily beached, to step off in ankle deep water. Sleeps two in the hulls, leaving room for small galley and chart table, but accommodation can be increased with a decktent, giving space for a double bunk.

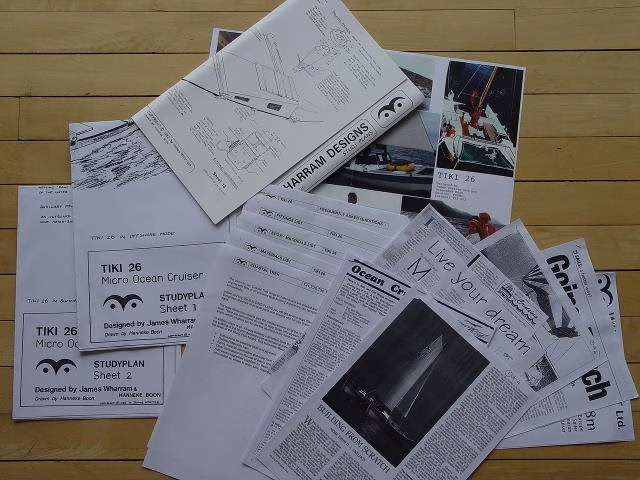

Study Plan Contents
- 2 x A1 Plan Sheet
- 1 x A3 Colour Photo Sheet
- Materials List
- 9 x Pages of magazine article extracts
- FAQ list
Design Data
Building Method: | Ply/Glass/Epoxy Stitch & Glue | |
---|---|---|
Length Overall: | 26′ | 7.92 m |
Beam Overall: | 15′ 1″ | 4.60 m |
Waterline length: | 22′ 6″ | 6.84 m |
Draft: | 1′ 4″ | 0.40 m |
Weight: | 1550 lbs | 700 kg |
Loading capacity: | 1700 lbs | 770 kg |
Sail area: | 285 sqft | 26.5 sqm |
Headroom in hulls: | ||
Over floor: | 3′ 11″ | 1.2 m |
Over bunk: | 2′ 11″ | 0.9 m |
Building Time Estimate: | 700 hrs |
