Find the right boat for you
Wharram Study Plans are intended to help you decide if a particular boat design is for you. They provide more detail than is available in the Design Book. The most important part of the Study Plan is the Materials List, which will list the major boat building materials requirements so you can cost your project in your own area. We feel sure that after studying these plans you will appreciate the quality and detail of the Building Plans.
Study Plans are only available as digital downloads. Downloads are instant access and eliminate delivery costs, which is particularly beneficial for international customers. They can also be printed if you wish.
The Mana 24 design does not have a study plan, comprehensive design information is available on our site.
Buying more than one Study Plan? The following discounts will be applied automatically:
- Two Study Plans: 10% off
- Three Study Plans: 20% off
- Four or more Study Plans: 30% off
Tiki 38 Study Plan
The Tiki 38 Study Plan is intended to help you decide if this design is for you.
Description
The TIKI 38 was designed using all the latest Wharram construction innovations. Her deckpod gives good shelter when ocean cruising and includes a bunk for the off-watch crew. Forward of the deckpod is 26 Sqr metres of safe, usable deck space. An excellent family cruising boat.
The TIKI 38 interior comprises two double cabins, two single cabins, galley, navigation station and toilet/shower, as well as good storage areas in bow and stern.

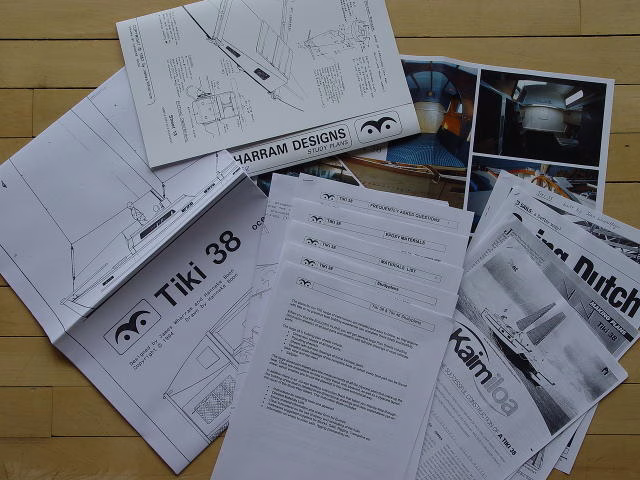

Study Plan Contents
- 1 Plan Sheet
- 1 x A3 Colour Photo Sheet
- Materials List
- Magazine article extracts
- FAQ list
Design Data
Building Method: | Ply/Glass/Epoxy/Laminate | |
Length Overall: | 38′ | 11.60 m |
Beam Overall: | 22′ 4″ | 6.20 m |
Waterline length: | 31′ 6″ | 9.60 m |
Draft (incl LAR keel): | 2′ 6″ | 0.75 m |
Weight: | 6600 lbs | 3000 kg |
Loading capacity: | 4400 lbs | 2000 kg |
Sail area: | 573 sqft | 53.2 sqm |
Bunk width (centre of hull): | 3′ 9″ | 1.14 m |
Forward bunk width: | 2′ 9″ – 1′ 4″ tapered | 0.85 m – 0.4 m tapered |
Platform Clearance: | 2′ 7″ – 2′ 11″ | 80cm – 90cm |
Building Time Estimate: | 2200 hrs |
