Find the right boat for you
Wharram Study Plans are intended to help you decide if a particular boat design is for you. They provide more detail than is available in the Design Book. The most important part of the Study Plan is the Materials List, which will list the major boat building materials requirements so you can cost your project in your own area. We feel sure that after studying these plans you will appreciate the quality and detail of the Building Plans.
Study Plans are only available as digital downloads. Downloads are instant access and eliminate delivery costs, which is particularly beneficial for international customers. They can also be printed if you wish.
The Mana 24 design does not have a study plan, comprehensive design information is available on our site.
Buying more than one Study Plan? The following discounts will be applied automatically:
- Two Study Plans: 10% off
- Three Study Plans: 20% off
- Four or more Study Plans: 30% off
Tangaroa Mk IV Study Plan
£15.50
The Tangaroa Mk IV Study Plan is intended to help you decide if this design is for you.
Description

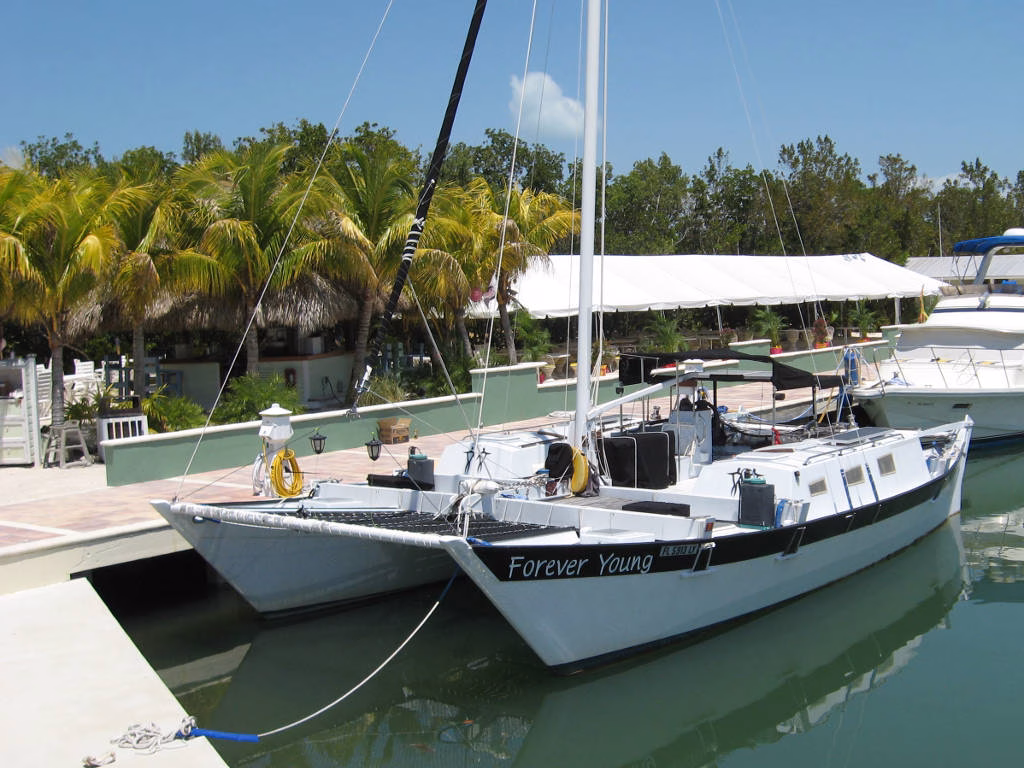

The Tangaroa Mk IV was a design that evolved from the Tangaroa Mk I, James’ first design for which he drew Self-building Plans in 1965. The Mk IV has more graceful hull lines, wider hull beam, more freeboard over the bunks and a longer cabin with standing headroom, so it is not to be mistaken for the Tangaroa Mk I of which many are still sailing.

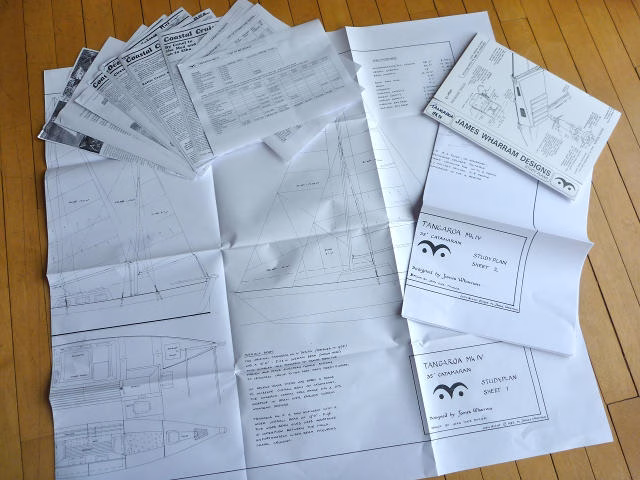

Study Plan Contents
- 2 x A1 Plan Sheets
- Materials List
- Fittings list
- 11 x pages of magazine articles extracts
- FAQ list
Design Data
| Building Method: | Ply/Timber/Epoxy/Laminate | |
|---|---|---|
| Length Overall: | 35′ 6″ | 10.82 m |
| Beam overall: | 19′ | 5.80 m |
| Waterline length: | 28′ 6″ | 8.69 m |
| Draft: | 2′ 1″ | 0.63 m |
| Weight: | 2 tons | |
| Loading capacity: | 1.5 tons | |
| Sail area: | 410 sqft | 38.1 sqm |
| Building Time Estimate: | 1800 hours | |
Visual Tour
